maestro
Registered: Mar 2004
Posts: 730 |
1541-2 issue
hi i wonder if anyone out there can help...
i seem to have a problem with my 1541-2 drive....this doesnt happen all the time but it is getting more frequent and becoming a problem...
when i 1st switch my c64 on and then my floppy drive the drive light comes on and the head starts spinning and both keep going and going and going....eventually after alot of powering off and on the drive starts as it should do...
does anyone know why this drive might be doing this and how to fix this issue
thanks
maestro |
|
| |
null
Account closed
Registered: Jun 2006
Posts: 645 |
I have the exact same issue on my 1451-II drives, I'd also like to know why it happens and what can be done about it.
------------------------------------
http://zomgwtfbbq.info |
| |
Oswald
Registered: Apr 2002
Posts: 5118 |
there are more repair guys on lemon, I'd ask there. |
| |
SIDWAVE
Account closed
Registered: Apr 2002
Posts: 2238 |
i had same problem.
it was one of the CIA chips in the C64. |
| |
Moloch
Registered: Jan 2002
Posts: 2961 |
---
Crimson Twilight Dev Updates [C64 CRPG] |
| |
Black Belt Jones
Account closed
Registered: Apr 2002
Posts: 57 |

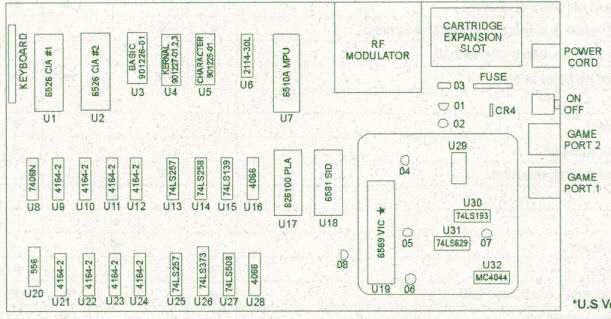

great chart(saving a copy)..
i had similar dramas with 2 different mkII drives, turned out to be the power supply. |
| |
j0x
Registered: Mar 2004
Posts: 215 |
Same here: A power supply issue in my case. |
| |
Stryyker
Registered: Dec 2001
Posts: 469 |
I experienced the same issue because of PSU. |
| |
ready.
Registered: Feb 2003
Posts: 441 |
I had kind of similar problems and discovered that the PSU gave more than 6V instead of 5V. I got a new PSU and now it works fine. Interesting that not all 1541-II behaved the same with the faulty PSU, some of them worked fine.
I built my own heavy duty PSU for both C64 and 1541-II, based on a transformer + switching regulator + overvoltage protection in case of failure. I will eventually provide these PSUs in kit after this summer I hope,my prototype:
http://www.cbm8bit.com/projects/ready/
Lemon thread:
http://www.lemon64.com/forum/viewtopic.php?t=27552&highlight=he..
|
| |
maestro
Registered: Mar 2004
Posts: 730 |
thanks for all the good comments..
so it looks like the psu is to blame...
now where to get a new one???
ready you can make me one if you like and ill pay you :) |
| |
ready.
Registered: Feb 2003
Posts: 441 |
I can't. I could supply you with a PSU kit once it is ready, but you have to solder the parts yourself. This is because for selling a PSU, a certification is required and that costs a lot, which would make the single PSU unit unaffordable.
Most likely the kits will be a bunch of components to be soldered on a board (already drilled and with all the traces). and of course detailed instruction on how to proceed with the soldering.
Let's see what I can come up with this summer.
|
